NSWGR AD60 class by Eureka models

Items used:

ESU 58420 LokSound 5 DCC decoder

DCCSound Premium speaker for the Eureka AD60 class

This installation included upgrading the factory twin speaker set up.

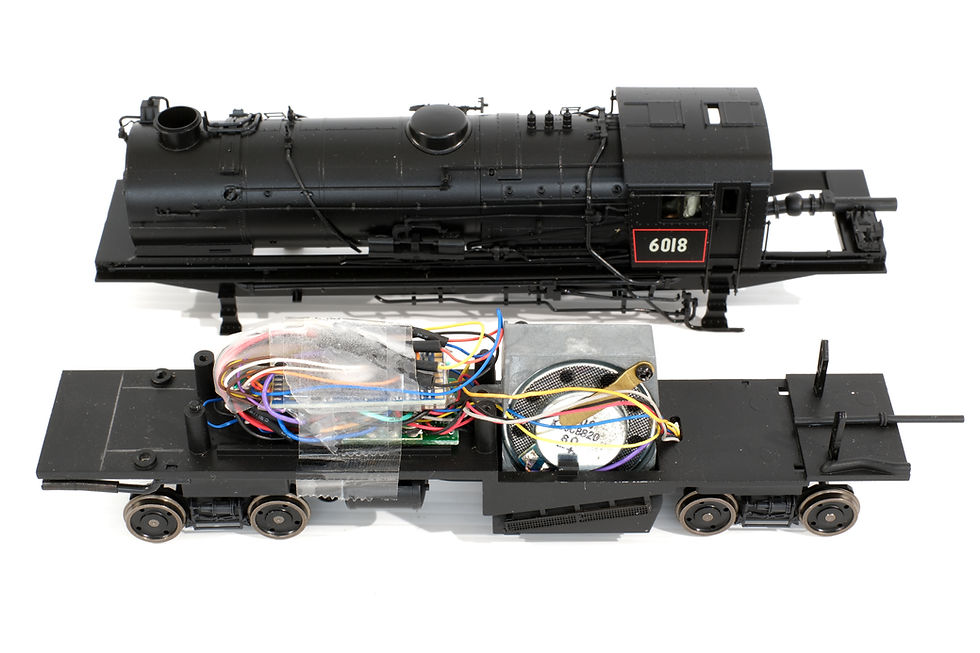

The centre section of the AD60 contains the decoder and speaker. Two screws under the smokebox are removed, which allows the body to be separated from the chassis.

The two factory speakers and centre weight are removed.

The premium speaker is wired to the two brown wires from the decoder.

The speaker is then placed in the well of the chassis, orientated as shown.

The decoder and wires are tidied up and the body along with two screws refitted.
