VR Walker 280 HP by Auscision Models

Items used:

ESU 58429 LokSound 5 DCC decoder

DCCSound Premium speakers

ESU 54671 Powerpack Mini (recommended)

Disconnect the trailers from the power unit, via plugs located in the ends of the trailers. This makes handling easier. The 21-MTC plug is located within the power unit. The power unit's body is removed from its chassis by splaying the lower sides outwards, and gently removing the powered chassis. The chassis has four decent sized lugs which retain the body.

Custom speakers from DCCSound are installed in the model, one in the guard's compartment of each passenger trailer. These are 8 ohm speakers, wired in parallel to match the 4 ohm impedance of the LokSound 5 decoder's sound amplifier. Each speaker is wired to the 'SPK' solder pads on the small PCB located in the end of each trailer. It is important to configure the wiring such that the speakers pump in phase with each other, otherwise the sound from one speaker can (partially) cancel out the sound energy from the other speaker if pumping 180° out of phase.

The left terminal of each speaker should go the to left side SPKR solder pad.

The right terminal of each speaker should go to the right side SPKR solder pad.

Note, each speaker is placed opposite to the door orientation on the back of each unit. This permits the inter-car wiring looms to be passed through.

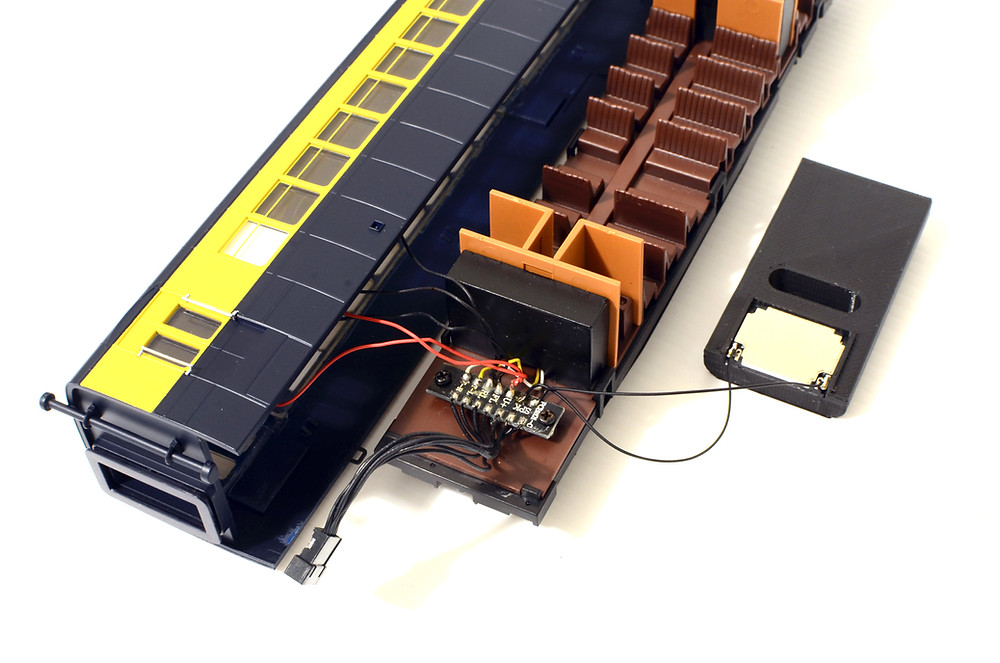

Custom speaker attached to small PCB:

ESU 58429 LokSound 5 21-MTC decoder installed in the power unit, while an ESU 54671 Power Pack Mini resides in a passenger trailer:

Note: Handle the 21 pin decoder with care - avoid electrostatic discharge to the decoder during handling, and ensure it is inserted correctly (refer to image of decoder mounted, as below), as incorrect insertion voids the decoder's warranty (misuse). Ensure passenger cars are reconnected in correct orientation with power unit (first class to first class), otherwise a short will occur and likely damage the decoder.
